The local garage gave us this job yesterday. Triumph T120 instrument cluster consistently blowing the fuse.
Usually, the instrument cluster itself is not the first thing I’d blame. A fuse blowing usually means a short to ground or overcurrent on that circuit.
The most likely causes are:
- Chafed or stretched loom near the headstock / steering stem
This is probably the first place to check. There are T120 owner reports of instrument-cluster power cutting out when the bars are turned because the loom/plug near the cluster is too tight or disturbed by steering movement. - Damaged wiring behind the instrument cluster
Look for crushed wires, rubbed insulation, water ingress, corrosion in the connector, or a pin pushed back inside the plug. - Shorted accessory wiring
Heated grips, USB chargers, GPS feeds, alarm/immobiliser wiring, aftermarket indicators, or tail tidy wiring can share or disturb ignition/instrument circuits. If any accessories were fitted recently, disconnect them first. - Water inside the cluster or connector
If the fuse blows only after rain/washing, suspect moisture/corrosion. The cluster may be internally shorted, but connector/wiring faults are more common. - Wrong fuse rating or incorrect replacement fuse
Do not up-rate the fuse. A bigger fuse can damage the loom or ECU. General motorcycle fuse-blowing guidance also points to wrong fuse rating, shorts, and wiring damage as common causes. - Fault inside the instrument cluster
Possible, especially if unplugging the cluster stops the fuse blowing.
Is it common?
Apparently its “”known rather than “common”. There are owner reports around the T120 instrument loom/cluster power issue, especially around the headstock and cluster connector area, but fuse-blowing is still more often a wiring/short issue than a widespread failed-cluster problem.
Best diagnostic path:
Turn the bars fully left and right while checking the cluster loom. If the fuse blows or the cluster flickers only in one steering position, the fault is almost certainly in the loom/connector around the headstock.
Then try this sequence:
- Fit the correct-rated fuse only.
- Unplug the instrument cluster.
- Turn ignition on.
- If the fuse no longer blows, inspect the cluster connector and cluster internals.
- If it still blows with the cluster unplugged, trace the harness back toward the fuse box/ignition circuit.
- Disconnect any aftermarket accessories and retest.

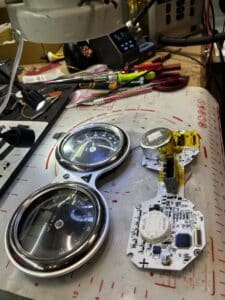

The garage did all the tests and brought the unit to us.

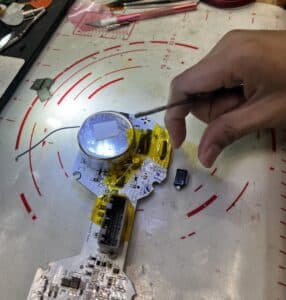

In our case, we actually got apparently rare occurrence of the cluster itself causing the short.
Technician’s notes about the job follow.
